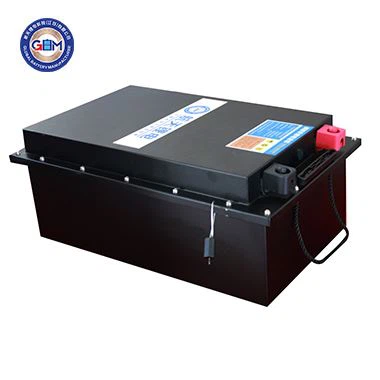

64V 75Ah LiFePO4 Battery Pack Long Range
Cell Type: Automotive-grade LiFePO₄
Cycle Life: 3500+ cycles
Daily Cost: < $0.06
Safety System: Smart BMS with 20 protections
Temperature Range: -20°C~60°C (expandable to -30°C with heating module)
Energy Density: 165 Wh/kg
Protection Level: IP6
Applications: Electric tricycles, sightseeing vehicles, light EVs, logistics transport
Description
Products Description
The 64V 75Ah LiFePO₄ battery pack is designed for long-range, high-load electric vehicles, making it ideal for electric tricycles, sightseeing cars, light EVs, and logistics transport. Built with automotive-grade LiFePO₄ cells, it offers a cycle life of over 3500 cycles and a daily cost below $0.06, delivering both performance and cost-efficiency.
Equipped with a smart BMS system, the battery provides 20 safety protections, including overcharge, over-discharge, short circuit, overcurrent, and temperature safeguards. It operates reliably in a wide temperature range of -20°C~60°C (expandable to -30°C with heating) and features IP6 protection, resisting rain, dust, and harsh conditions.
The pack supports fast charging and also offers custom LiFePO₄ battery pack options to meet specific voltage and capacity requirements. A complete LiFePO₄ battery pack assembly can be paired with a LiFePO₄ battery pack charger for safe and efficient charging.
Choosing the 64V 75Ah LiFePO₄ battery pack ensures extended range, reduced vehicle weight, and real-time battery monitoring, providing a durable, safe, and intelligent mobility solution.
Specifications：
| Item | Parameters |
| Product Model | 6475 |
| Nominal Energy(Wh) | 4096 |
| Nominal Voltage (V) | 64 |
| Operating Voltage (V) | 50-72 |
| Maximum Discharge Current(A | 75 |
| Peak Current(A) | 112.5 |
| Dimensions(L×W×H,mm) | 470*300*215 |
| Product Weight (kg) | 38.3 |
| Waterproof Rating | IP6 |
| Charging Temperature(℃) | 0-55 |
| Discharging Temperature(℃) | -20-60 |
| Heating Function | Optional |
| GPS/Bluetooth Function | Optional |
Features：
Long Range: 4096Wh capacity, 165 Wh/kg high energy density.
Durable & Cost-Effective: 3500+ cycles, daily cost < $0.06.
Smart Safety: BMS with 20 protections.
Wide Temperature Range: -20°C ~ 60°C, down to -30°C with heating.
High Protection: IP6-rated, dustproof and waterproof.
Powerful Output: Continuous 75A discharge, peak 112.5A.
Customizable: Voltage/capacity options, GPS/Bluetooth available.
Wide Applications: Electric tricycles, sightseeing vehicles, light EVs, logistics transport.
Application：
Perfect for electric motorcycles, three-wheelers, and enclosed tricycles-ideal for commuting, deliveries, and fleet operations.

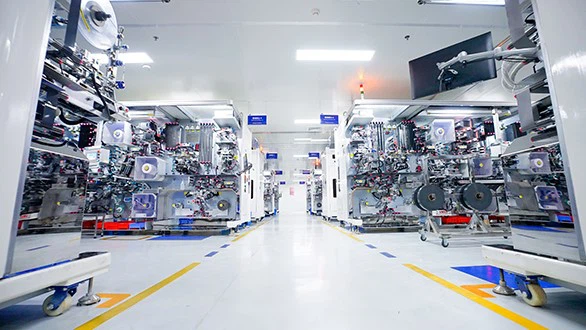

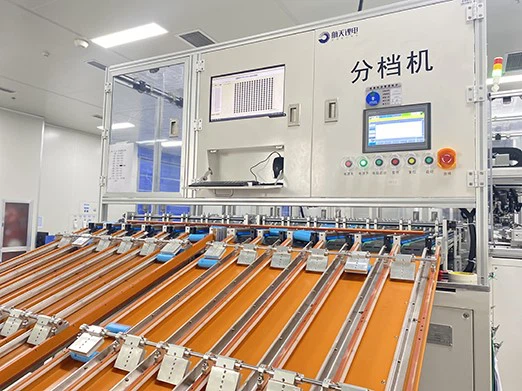

Factory & Quipment:
OptimumNano, founded in 2020, is a national "Little Giant" enterprise specializing in LiFePO₄ large cylindrical cells. With a core team of 20 years' experience, we focus on high-performance batteries for electric motorcycles, three-wheelers, and enclosed tricycles,mining trucks, heavy trucks, and mobile fast-charging vehicles. Our advanced production lines and R&D facilities ensure top quality and reliable supply for global customers.

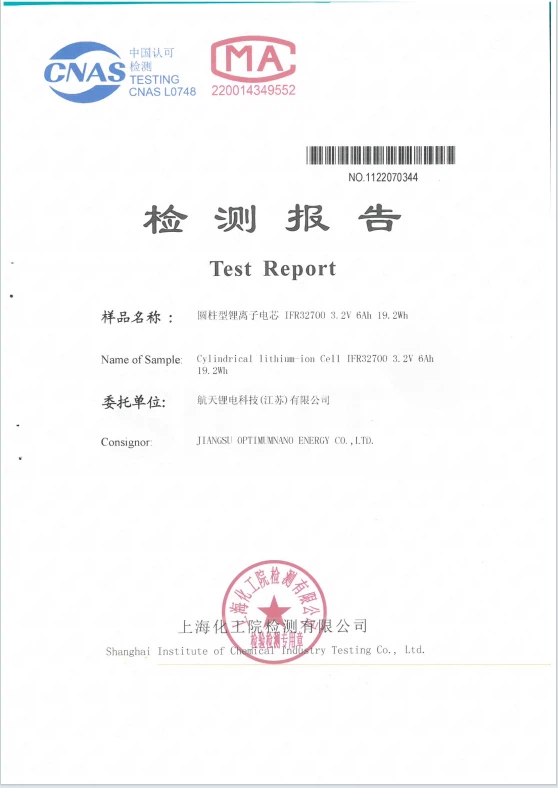

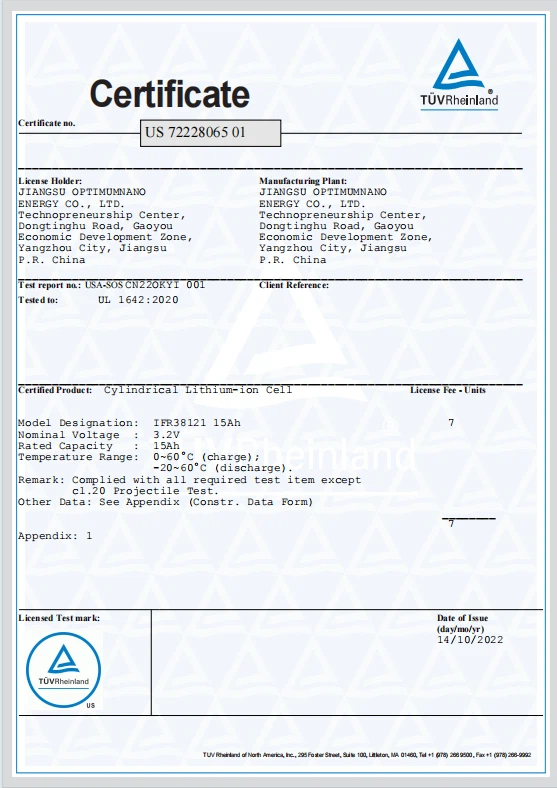

Certification:
OptimumNano specializes in high-performance 64V 25Ah LiFePO₄ battery packs for electric motorcycles, three-wheelers, and enclosed tricycles. Our products meet global safety and quality standards, certified with UN38.3, MSDS, BIS (for India), UL, CE, and more, ensuring reliable performance for customers worldwide.
Packaging & Delivery：
Added an inner carton for extra protection.Double-layer thick UN-certified cardboard outer box.Outer box labeled with crush-proof, waterproof, and fire-proof warnings.Reinforced with PVC shrink wrap for added stability.
Shipping:Bulk orders: Delivery within 30–45 days after receiving the deposit.Sample orders: Can be shipped within 7 days. For bulk orders, sea freight is recommended. If needed, we can provide freight forwarding services.
FAQ:
Q1: How far can the battery run on a single charge?
R: On electric tricycles or sightseeing cars, it can deliver around 80–120 km per charge, depending on vehicle load, road conditions, and driving habits.
Q2: What is the lifespan of this battery?
R: The battery offers 3500+ cycles, which means about 8–10 years of daily use with ≥80% capacity retention.
Q3: How long does it take to fully charge?
R: Standard charging takes 4–6 hours. With fast charging, it can be recharged within 2–3 hours.
Q4: What is the discharge capability?
R: It supports 1C continuous discharge and up to 2C peak discharge, suitable for motors from 2kW to 5kW.
Q5: What protection functions does the BMS include?
R: The smart BMS offers 20 safety protections, including overcharge, over-discharge, overcurrent, short-circuit, balancing, and temperature control.
Q6: Do you have certifications for export?
R: Yes. The battery complies with international standards and can provide UN38.3, MSDS, and CE certificates for global shipping.
Q7: Is the battery waterproof?
R: The pack is rated at IP65, dustproof and splash-proof. For higher requirements, IP67 customization is available.
Q8: Can I customize the battery?
R: Absolutely. We offer customization for voltage, capacity, casing size, and connectors to fit different vehicle models and projects.
Q9: What is the delivery time?
R: Samples can be delivered in 7–10 days. Bulk orders usually take 25–30 days.
