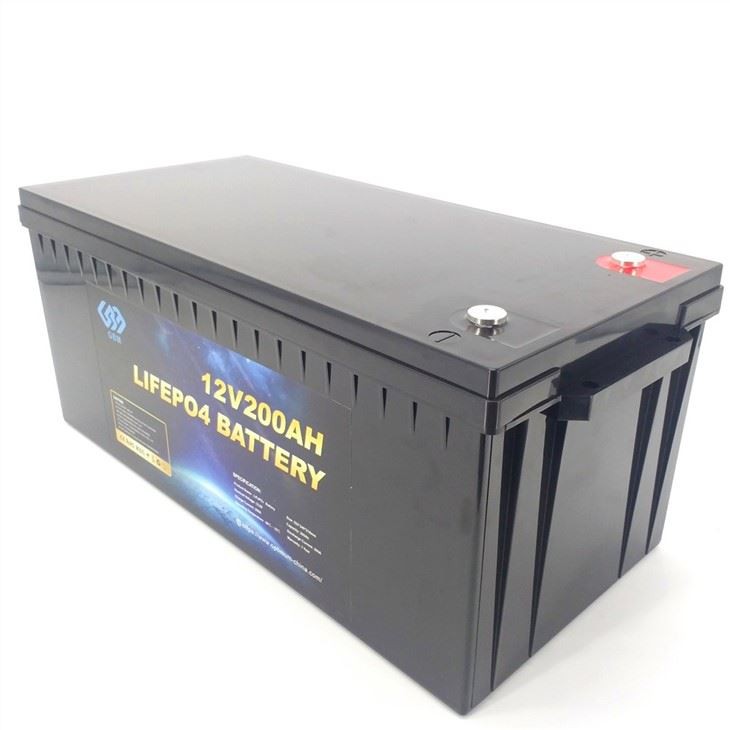

High Capacity 2.5kwh Lithium Phosphate Battery 12v 200ah 210ah Lifepo4 Solar Battery 12v 200ah Rechargeable Batteries
High Capacity 2.5kwh Lithium Phosphate Battery 12v 200ah 210ah Lifepo4 Solar Battery 12v 200ah Rechargeable Batteries
High Capacity 2.5kwh Lithium Phosphate Battery 12v 200ah 210ah Lifepo4 Solar Battery 12v 200ah Rechargeable Batteries
High Capacity 2.5kwh Lithium Phosphate Battery 12v 200ah 210ah Lifepo4 Solar Battery 12v 200ah Rechargeable Batteries
High Capacity 2.5kwh Lithium Phosphate Battery 12v 200ah 210ah Lifepo4 solar battery 12v 200ah rechargeable batteries.only half to a third of the weight of a Lead Acid battery, LiFePO4 is the ideal choice for Marine, RV, Golf Carts,Motorcycles and Off-Grid applications.
Description
High Capacity 2.5kwh Lithium Phosphate Battery 12v 200ah 210ah Lifepo4 solar battery 12v 200ah rechargeable batteries
| Model Number | HT-LF20 | HT-LF50 | HT-LF60 | HT-LF90 | HT-LF100 | HT-LF105 | HT-LF150 | HT-LF210 |
|---|---|---|---|---|---|---|---|---|
| Nominal capacity | 20ah | 50ah | 60ah | 90ah | 100ah | 105ah | 150ah | 210ah |
| Nominal Voltage | 12.8v | 12.8v | 12.8v | 12.8v | 12.8v | 12.8v | 12.8v | 12.8v |
| Approx.Weight | 3kg | 6kg | 8kg | 10kg | 12kg | 13kg | 18kg | 22kg |
| Size(L*W*H) (mm) | 177*75*165 | 194*162*168 | 194*162*168 | 302*162*209 | 329*172*214 | 329*172*214 | 532*207*215 | 522*240*218 |
| Standard Charge current | 10A/0.5C | 25A/0.5C | 30A/0.5C | 45A/0.5C | 50A/0.5C | 52.5A/0.5C | 75A/0.5C | 105A/0.5C |
| Standard Discharge Current | 10A/0.5C | 25A/0.5C | 30A/0.5C | 45A/0.5C | 50A/0.5C | 52.5A/0.5C | 75A/0.5C | 105A/0.5C |
| Max Continuous Discharge Rate | 2.0C | 2C | 2.0C | 2.0C | 2.0C | 2.0C | 2.0C | 2.0C |
| Max Pluse Discharge Rate | 3.0C(3S) | 3.0C(3S) | 3.0C(3S) | 3.0C(3S) | 3.0C(3S) | 3.0C(3S) | 3.0C(3S) | 3.0C(3S) |
| Maximum series/parallel | 4 /4 | 4 /4 | 4 /4 | 4 /4 | 4 /4 | 4 /4 | 4 /4 | 4 /4 |
| Configuration | 4S5P | 4S7P | 4S4P | 4S6P | 4S25P | 4S7P | 4S10P | 4S14P |
| Battery cell | 26700-4Ah | 32800-7.2Ah | 38121-15Ah | 38121-15Ah | 26700-4Ah | 38121-15Ah | 38121-15Ah | 38121-15Ah |
Product features:
★Internal BMS monitors battery in real time and alarms the user if any voltage or capacity abnormalities are detected.
★At only half to a third of the weight of a Lead Acid battery, LiFePO4 is the ideal choice for Marine, RV, Golf Carts,Motorcycles and Off-Grid applications.
★Without any corrosive or harmful heavy metals, Our lifepo4 lithium Batteries are more environmentally friendly than SLA batteries.
★LiFePO4 batteries have a low discharge rate and long service life, with an average life expectancy of about 5 to 10 years.
★12v/24v Lifepo4 battery packs available, made of our GBM grade A cylindrical cells.
Our Advantage:
1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life.
2000 Cycle Times 80% DOD
3000 Cycle Times 70% DOD
4000 Cycle Times 60% DOD
3. Bulit-in smart BMS with multiple protection and communication functions(optional).
4. Wide working temperature range and high reliability.
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters.
